Sanitary 2-Way Ball Valve from China manufacturer

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

The sanitary ball valve is used for the control of liquid flow in beer, beverage, pharmacy field. They are combination of food

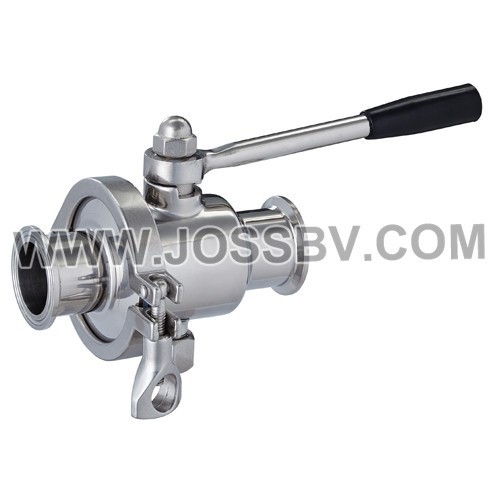

Sanitary 2-Way Ball Valve

NO. JOBV-2008

Applications:

Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage, Wine, Oil Refining, Cosmetics And Chemical Industries.

Design Features:

Size: 1/2"-4", DN10-DN100
Temperature: -20C-120 C
Pressure: 10 Bar
Material: AISI304, AISI316L
Gaskets: PTFE FDA 177. 1550
Whatever The Connection, It Does Not Change The Total Length Of The Valve
Connection: Clamp, Weld, Male, Flange, Standard With 3A, SMS, DIN, RJT, IDF.
Advantage: Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators.
Certificate: PED/97/23/EC

Size (DN)	A (mm)	L (mm)	H (mm)	B(mm)	Dn	W (g)
DN15	90.0	105(105)	65.0	34.0	15
DN20	100.0	105(105)	65.0	34.0	19
DN25	110.0	105(120)	70.0	50.5	25
DN32	120.0	130(130)	80.0	50.5	31
DN40	140.0	150(140)	80.0	50.5	37
DN50	164.0	160(165)	85.0	64.0	49
DN65	180.0	180(190)	110.0	91.0	66

Size (mm)	A (mm)	L (mm)	H (mm)	B(mm)	Dn	W (g)
19	90.0	105	65.0	25.4	16.0
25	100.0	120	70.0	50.5	22.4
32	120.0	130	80.0	50.5	28.8
38	140.0	140	80.0	50.5	35.1
51	164.0	165	85.0	64.0	47.8
57	170.0	190	110.0	77.5	53.0
63	180.0	190	110.0	77.5	59.5
